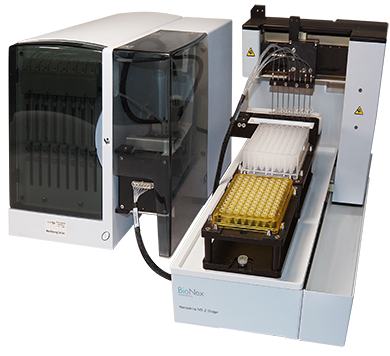

Nanodrop Low Volume Pipettor
For a complete high-throughput solution for low-volume, high-precision pipetting, try the 8-channel Nanodrop II or the 16-channel Nanodrop Express.
Each system has interchangeable, fixed-tip heads (1×8 or 2×4 configurations for the Nanodrop II and 1×16 or 2×8 configurations for the Nanodrop Express) and comes with two plate positions that enable applications such as assay miniaturization, DNA normalization, method development, PCR and NGS reaction setup, or protein crystallography.

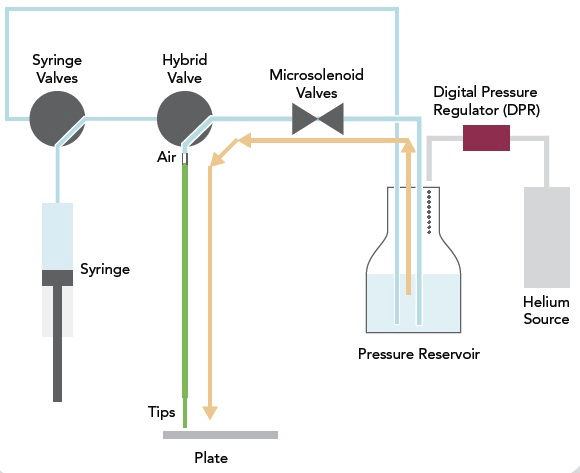

The Nanodrop technology aspirates and dispenses a broad range of liquids, including DMSO, and features the Nanobuilder software system that enables a wide range of applications and data manipulation. This patented technology isolates the solenoid dispense actuators from the sample path to assure long life and easy, low- cost maintenance – even with regular use of difficult suspensions such as proteins, cells and YOx beads.
Key Features and Benefits
• Sample transfer and bulk reagent addition on the same platform
• Aspirate and dispense with individual channel volume control
• Interchangeable 1×8 to 2×4 head; or, 1×16 to 2×8 heads
• Micro solenoid valves for fast, precise low-volume applications and mixing
• Exceptional dynamic range (nanoliter to milliliter)
• Valve-free fluid path for outstanding reliability
• FEP, SS, sapphire wetted parts compatible with commonly used solvents
• 96-, 384- and 1536-well plate formats, irregular and flat plate formats supported
• Deep well and crystallography plates supported
• Easy to program, easy to automate
• Simple cleaning and maintenance
Typical Applications
PCR template and cocktail additions
DNA normalization
Assay miniaturization
Serial dilution
Cell plating
Sample transfer
Bulk reagent addition
Protein crystallography screens
MALDI plate spotting
Performance Specifications
Dispense Range
• Microsolenoids: 0.1 – 80ul
• 500ul syringe: 5-500ul
• 1000ul syringe: 5-1000ul
Aspirate Range
• 500ul syringe: 0-500ul
• 1000ul syringe: 0-1000ul
Dispense Precision
• ≤ 10% at 100nl
• ≤ 7% at 200nl
• ≤ 5% at 1ul
Residual Volume
• < 3ul per channel
General Specifications
Dimensions
• Nanodrop II Fluidics: 13″ H x 11″ W x 18″ D
• Nanodrop Express Fluidics: 13″ H x 22″ W x 18″ D
• Stage: 12.7″ H x 9.7″ W x 21.1″ D
Weight
• Nanodrop II Fluidics: 25 pounds
• Nanodrop Express Fluidics: 50 pounds
• Stage: 29.5 pounds
Automation Control
• .NET DLL components
Interface
• RS-232 connectivity, Nanobuilder software
