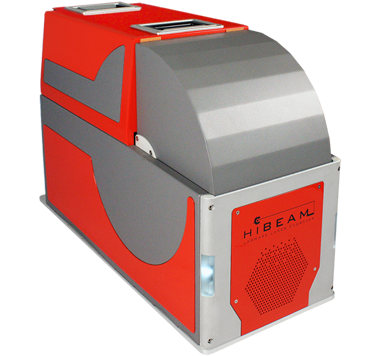

HiBeam Microplate Laser Engraver Labeler

HiBeam Laser Engraver Labeler

Permanent Marking Cannot Be Washed Off

The HiBeam labware laser engraver is next-generation technology to provide direct indelible microplate marking that is far superior to conventional printed labels. The HiBeam marks directly on the labware surface, thereby eliminating the risk of adhesive-backed labels becoming detached due to poor adhesion, humidified environment, centrifugation, solvent contact or other interferences that typically plague print-and-apply labelers. Adhesive labels, ribbons, thermal paper or any other types of consumables are not needed.

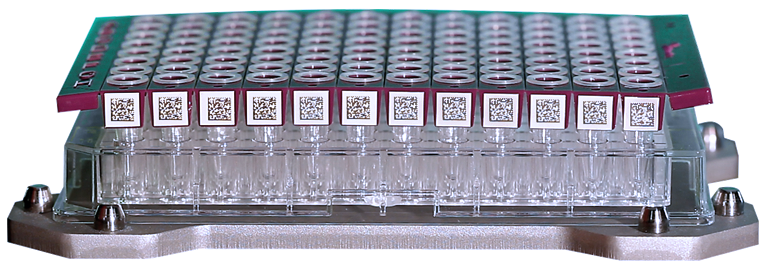

Imprint True-Font Text, Graphics, Logos, 1D Barcodes, 2D Barcodes and More
Flexible laser positioning allows text, graphics and barcodes to be placed on both the long side and short side of labware, with the imprint area not being constrained by a label size. Software controlled laser operating parameters provide optimum marking performance on a wide variety of labware materials, colors, and heights. The automatic enclosure provides complete protection from laser radiation while allowing safe viewing of the marking operation. The rotating plate pad allows the HiBeam to easily process ANSI/SLAS compatible labware in portrait or landscape mode, and its compact footprint permits easy integration into laboratory automation systems.

Tunable Laser Marks a Wide Variety of Materials
The HiBeam laser engraver provides the ultimate in labware traceability.
Its direct indelible marking provides a complete consumables-free solution for the most demanding applications in manufacturing, drug discovery, genomics and clinical diagnostic applications.

Key Features and Benefits
• Permanent marking cannot be washed off
• Compatible with all barcode formats and pre-labeled microplates
• Marks polystyrene, polypropylene and polyolefin materials
• Compatible with clear, translucent, white and black microplates
• Rotating plate stage allows microplate entry and exit in any orientation
• Easily integrated into microplate handling and automation systems.

General Specifications
• Height: 409 mm [16.1in]
• Width (inches): 259 mm [10.2in]
• Depth (inches): 559 mm [22.0in]
• Weight (pounds): 30.4 kg [67lbs]
• Loading: Portrait or Landscape
• Throughput for 1 Barcode: 10 seconds/plate
• Throughput for 12 Barcode: 35 seconds/plate
• Maximum Vessel Height: 66 mm for long side engraving, 33 mm for short side engraving
• Available Sides for Engraving: NESW
• Laser Class 4, Class 1 enclosure
• Operating Temperature 15-35 degrees C
• Humidity 10-85%, non-condensing
• Communication: USB 2.0
• Electrical: 100-240 VAC, 50/60 Hz, 15 A

Typical Applications
• Assay automation
• Compound Management
• Biobanking
• Genomics
• Clinical diagnostics
• Veterinary diagnostics
• Microplate-based manufacturing
